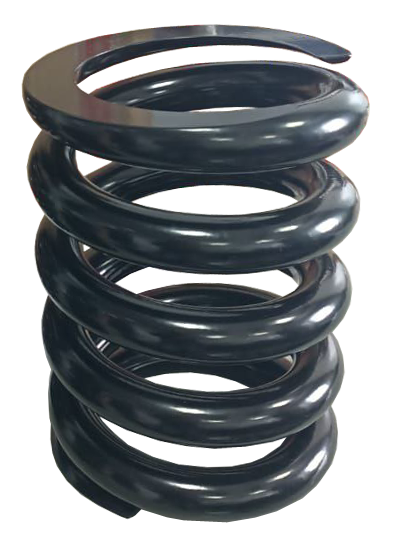

Outer spring for bogie Y25; 25т
Standard: UIC 822, EN 13298
Bogie type: Y 25
Load capacity: 25.00
Drawing number: 2 FWG 696.0.02.023.002
Type: Outer spring
Bogie type: Y 25
Load capacity: 25.00
Drawing number: 2 FWG 696.0.02.023.002
Type: Outer spring
| Spring parameters | |
| Steel: | 51CrV4 according to EN 10089 |
| Bar diameter, mm: | 31.00 |
| Weight, kg: | 15.00 |
