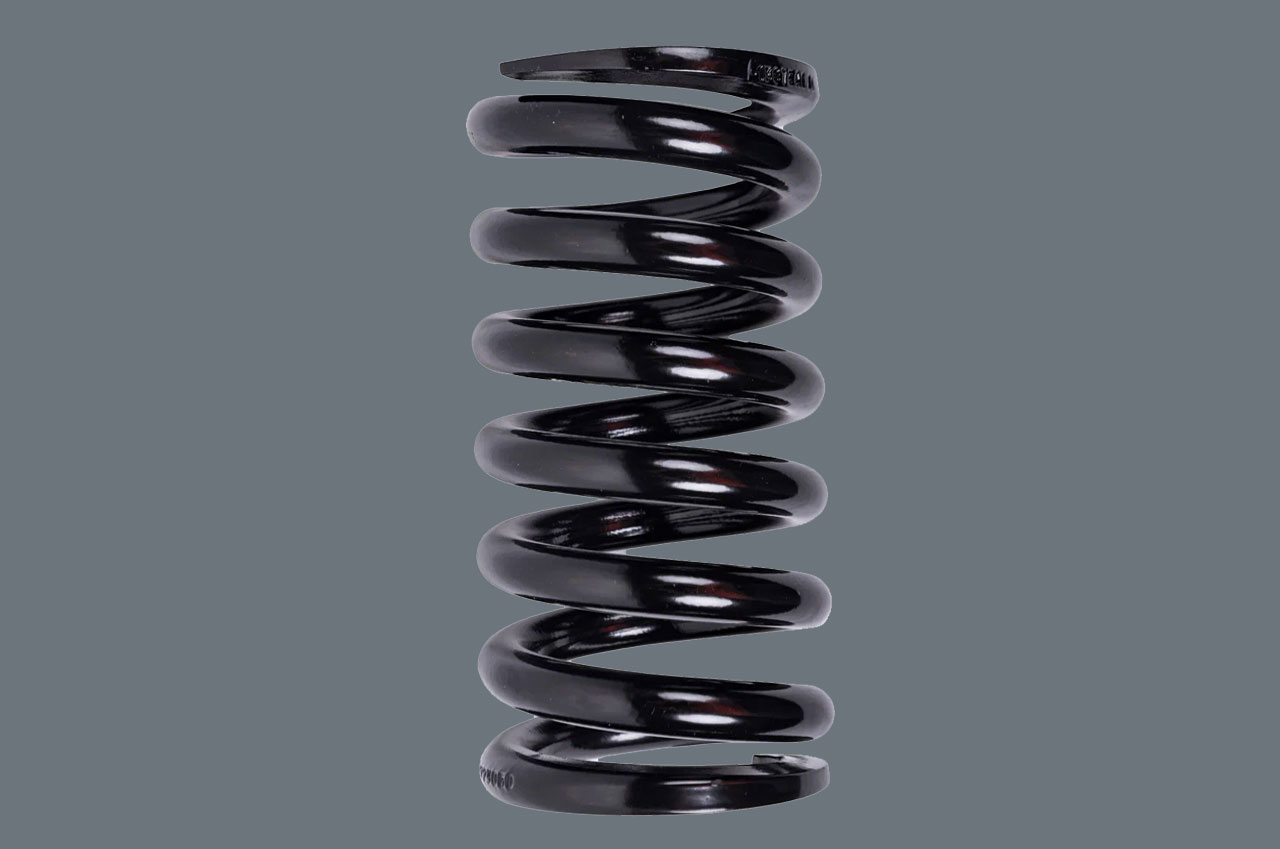

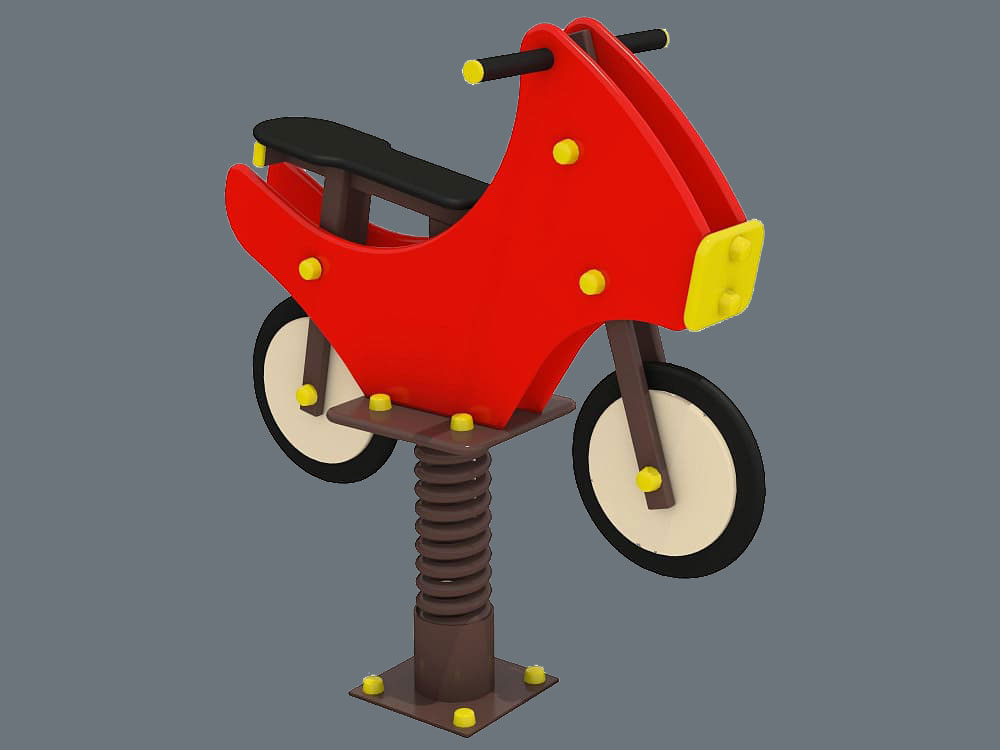

Springs for kids playgound

Springs for playgrounds complexes of all diameters and configurations that comply with international safety standards for playground equipment.

• Custom production. We implement projects according to your individual drawings, samples and sketches.
• Standard solutions. We have a catalog of ready-made springs for most models of gaming complexes.
• Quality and safety assurance. All components are manufactured in compliance with strict industry standards.

We will provide your complex with reliable and safe springs of any complexity.
Bar diameter from 15 mm to 60 mm
Spring height up to 1000 mm
Spring outer diameter up to 520 mm
Coating Powder Polymer coating
Catalog of ready-made springs for standard models of game complexes
  • 18/170/410
  • 22/122/430
  • 25/230/450
  • 18/190/334
  • 22/132/380
  • 22/124/500
  • 20/200/400
  • 20/200/360
  • 20/120/395
  • 20/150/330
Sustainability
• Compliance with GOST 34279-2017, UNI 8930
• Fatigue resistance under cyclic loads
• Stability of performance over the entire service life
• Safe deflection under load
• Resistance to mechanical damage of the coating
All springs are subject to mandatory durability and safety tests.
The quality provided by technology
Springs for children's sports complexes are produced by hot coiling with controlled heating, the technology provides:
• Maintaining the optimal microstructure of the metal, eliminating cracks in stress concentration zones
• Uniform distribution of hardness along the length of the spring, longer service life during cyclic rocking
• Increased resistance to dynamic multi-axis loads, guaranteed safety under multiple multidirectional loads
The springs comply with the requirements of domestic and international standards for fatigue strength and reliability.
Increased resource
Shot blasting used in production:
• Relieves internal stresses of the material
• Increases the adhesion of the protective coating
• Increases corrosion resistance
Protective coatings aesthetics of springs
Specialized powder polymer coating is used for springs operating in an aggressive environment:
• Durability of 670 hours in salt mist, conforms to ASTM B117 standard
• Resistance to UV radiation, mechanical damage
• Wide range of color solutions
The best choice for playgrounds and outdoor equipment. This coating guarantees the preservation of the performance characteristics of the springs under prolonged exposure to precipitation, temperature fluctuations and other aggressive factors.
Compliance with ISO 9001 standards, parameter control in accordance with GOST 34279-2017

According to the results of research tests, the springs for playgrounds withstood the required number of load cycles without destruction, while maintaining their operational and aesthetic properties.
Controlled parameters:
• surface quality control
• measurements of thickness, quality of application, adhesion of the coating
• control of geometric parameters of products
• cargo characteristics




Mordern equipment and high competencies компетенции
Multi-stage product quality control
Guaranteed service and delivery time
Reliable materials
