Building production processes at RPC SPRING

order a consultation
Production of hot coil springs is certified according to the ISO 9001 Quality Management System The company carries out a full cycle of development and production work:
  • developing a technical task
  • creating a project/structure
  • making samples
  • development of mass production of products


Production capabilities

Plant capacity 10,000 car sets per year
Rod from 15 to 60 mm
Spring diameter up to 520 mm
Spring height up to 1000 mm


Automated production of hot coiling

The processes are built on the principle of pulling production, allowing you to fulfill orders of various complexity in a given time according to the optimal budget of the customer.

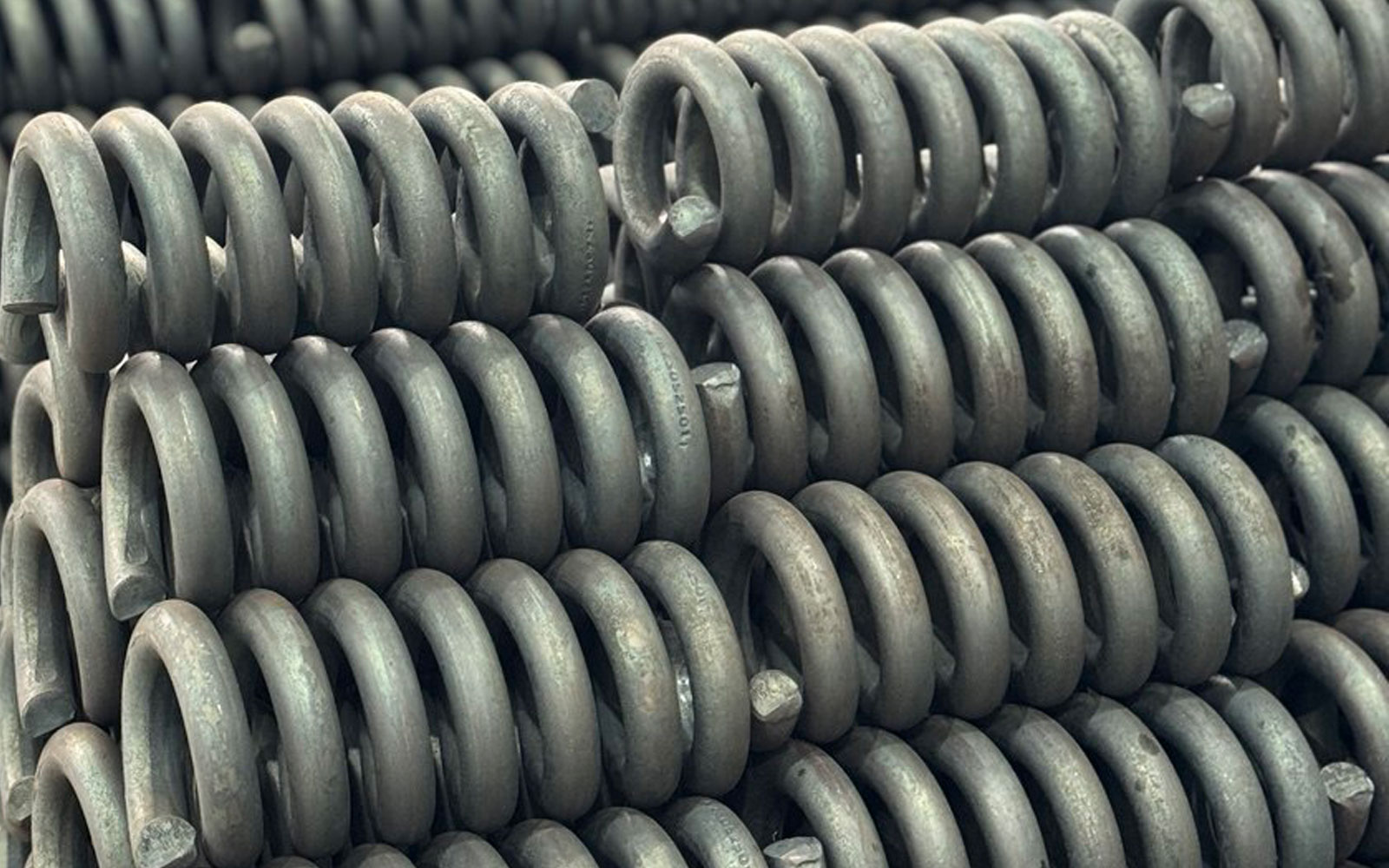

Spring manufacturing

The automated spring production line is tied into a single process control system. The influence of the human factor is minimized.

Stages of railway spring production:

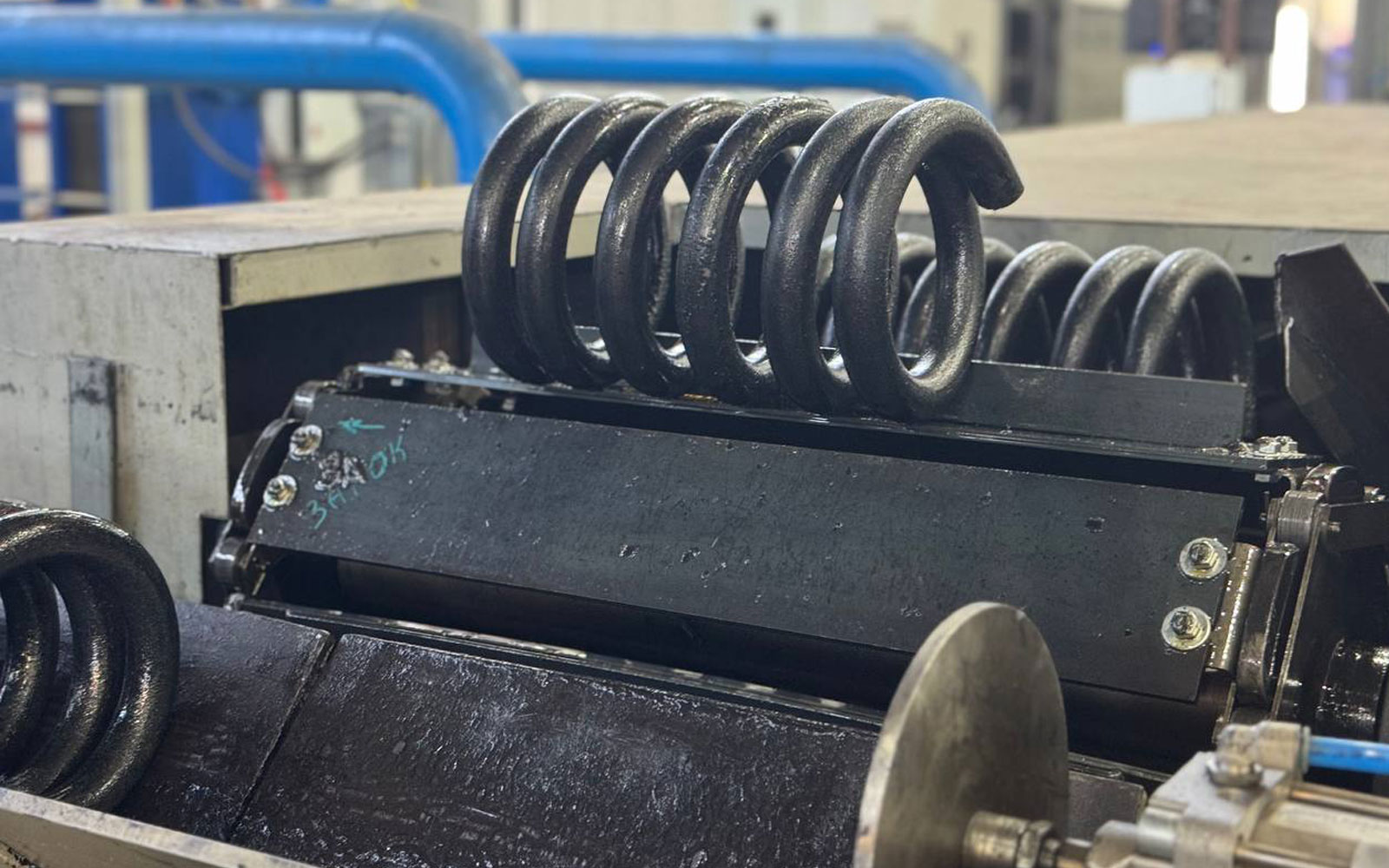

Hot winding with induction heating of the bar.
Quenching in oil - changing the microstructure and increasing hardness indicators

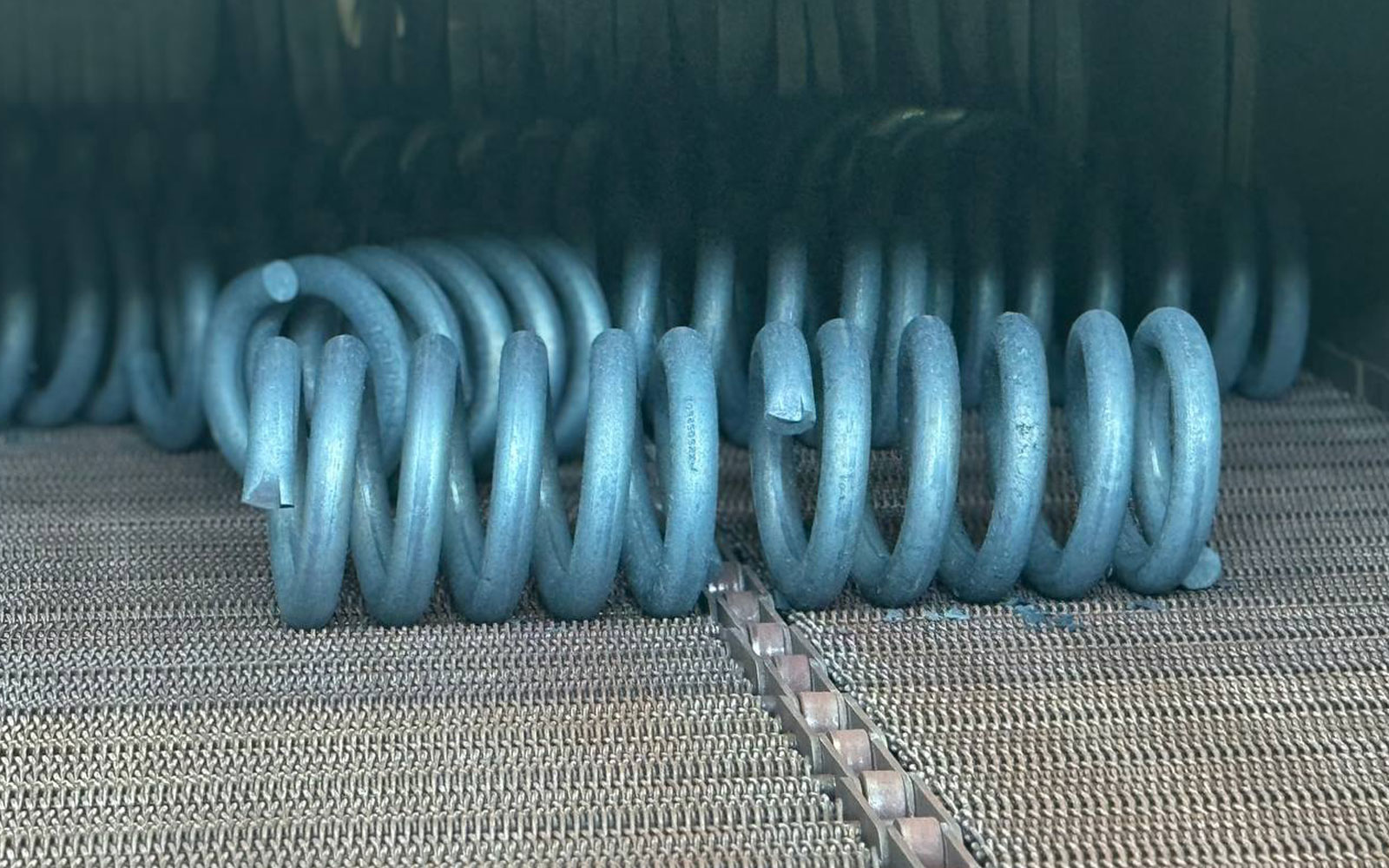

Heat treatment in furnaces to obtain the required hardness and relieve stress.
Multiple compression to create a useful residual stress and elastic reserve.

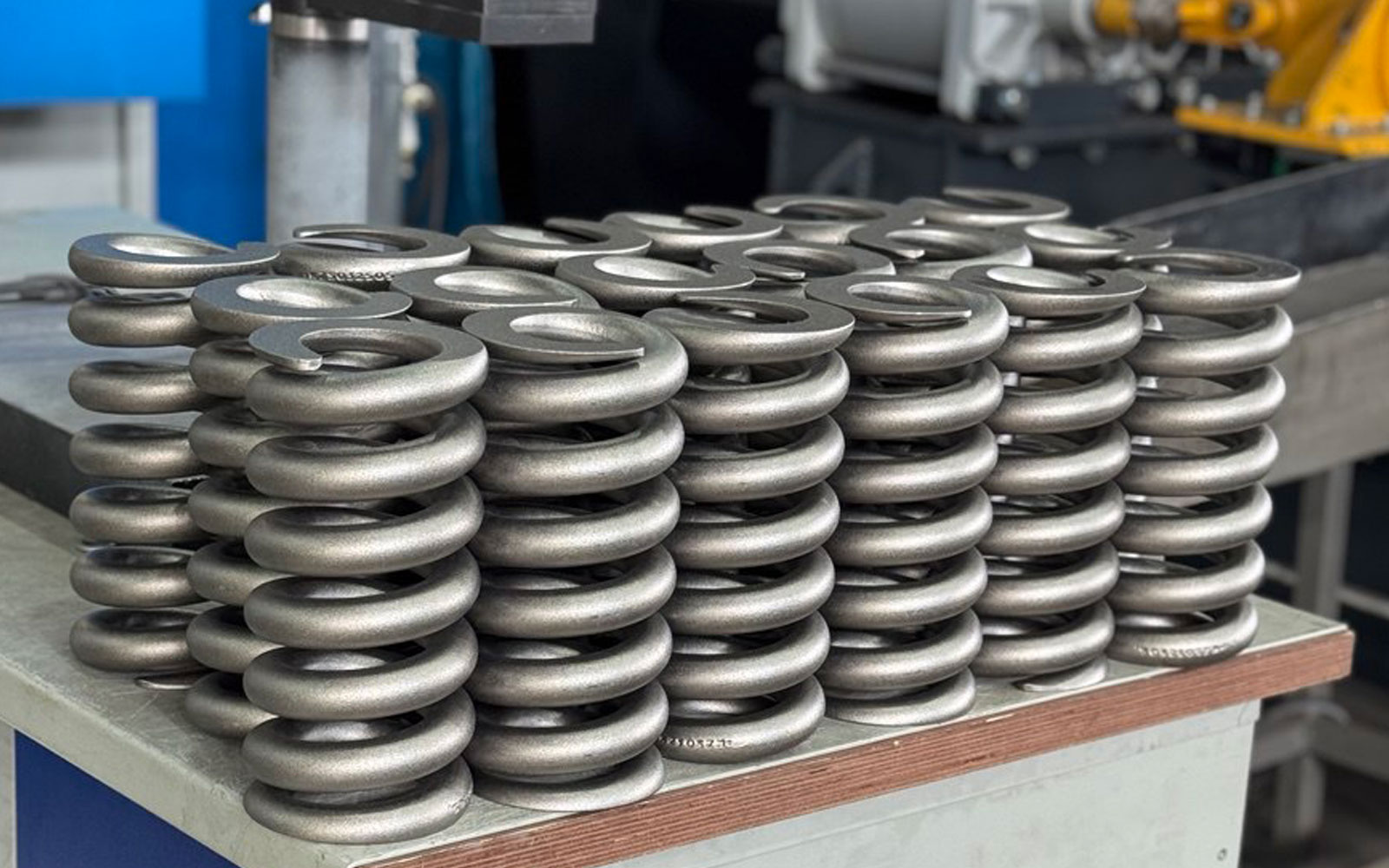

The ends are formed in two stages: pre-processing grinding and finishing.
Shot hardening of springs to increase the cyclic life of the spring.
Flaw detection is a post of non-destructive testing by magnetic powder method.
Checking load characteristics with special test equipment.
Spring coating-painting protection against corrosion.
Branding and packaging provides various options according to the requirements of the client's processes.
Raw materials
Spring steel grades
51CrV4 according to EN 10089
60S2A, 60S2HA, 60S2HFA, 51HFA, 65S2VA according to GOST 14959-2016.

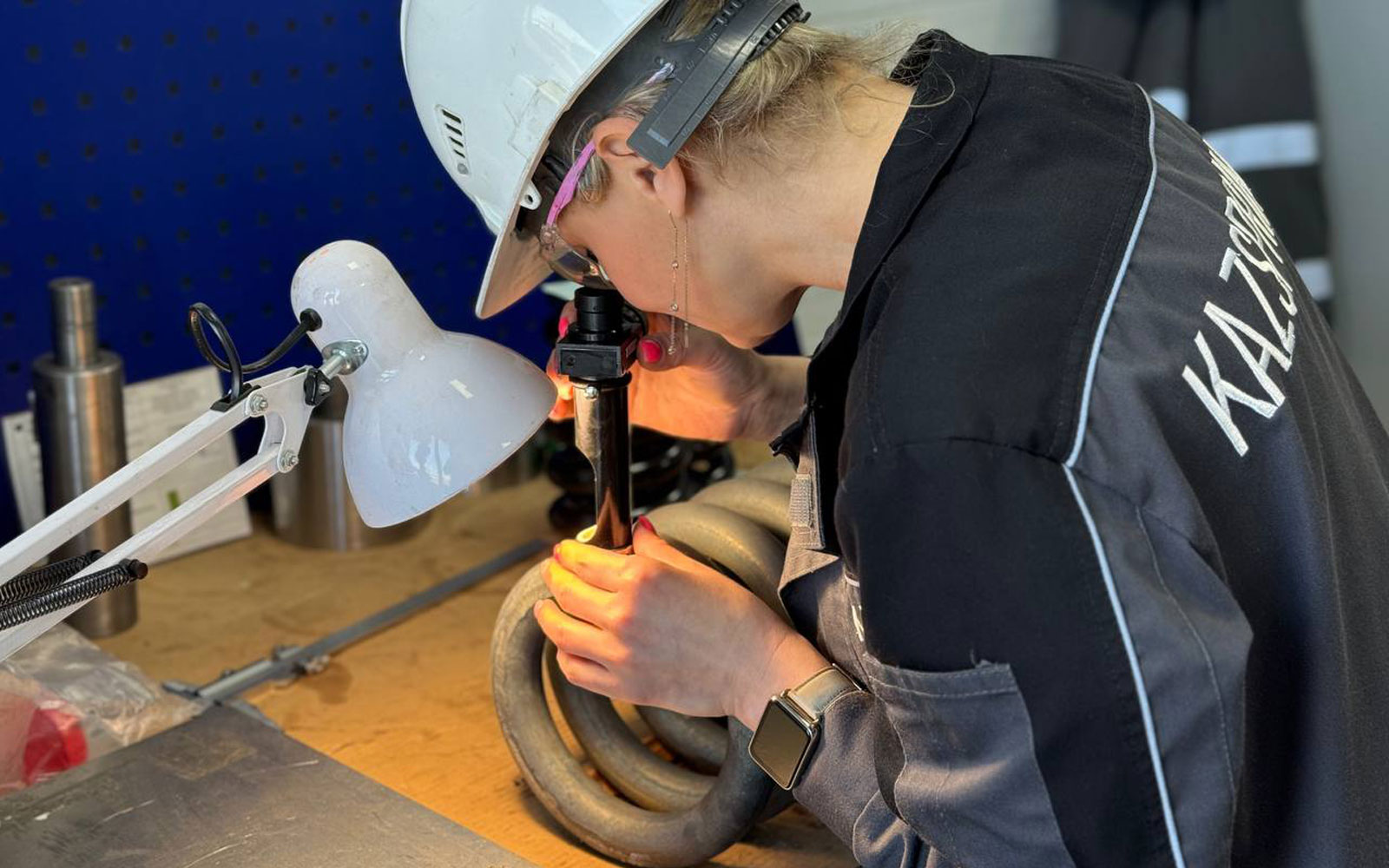

Quality control of the workpiece includes several stages, starting from the moment of a responsible approach to the selection of a supplier, conducting an audit, and working out an experimental batch. As part of serial deliveries, physical and mechanical properties, microstructure and chemistry are monitored in the plant's laboratory.
Coating

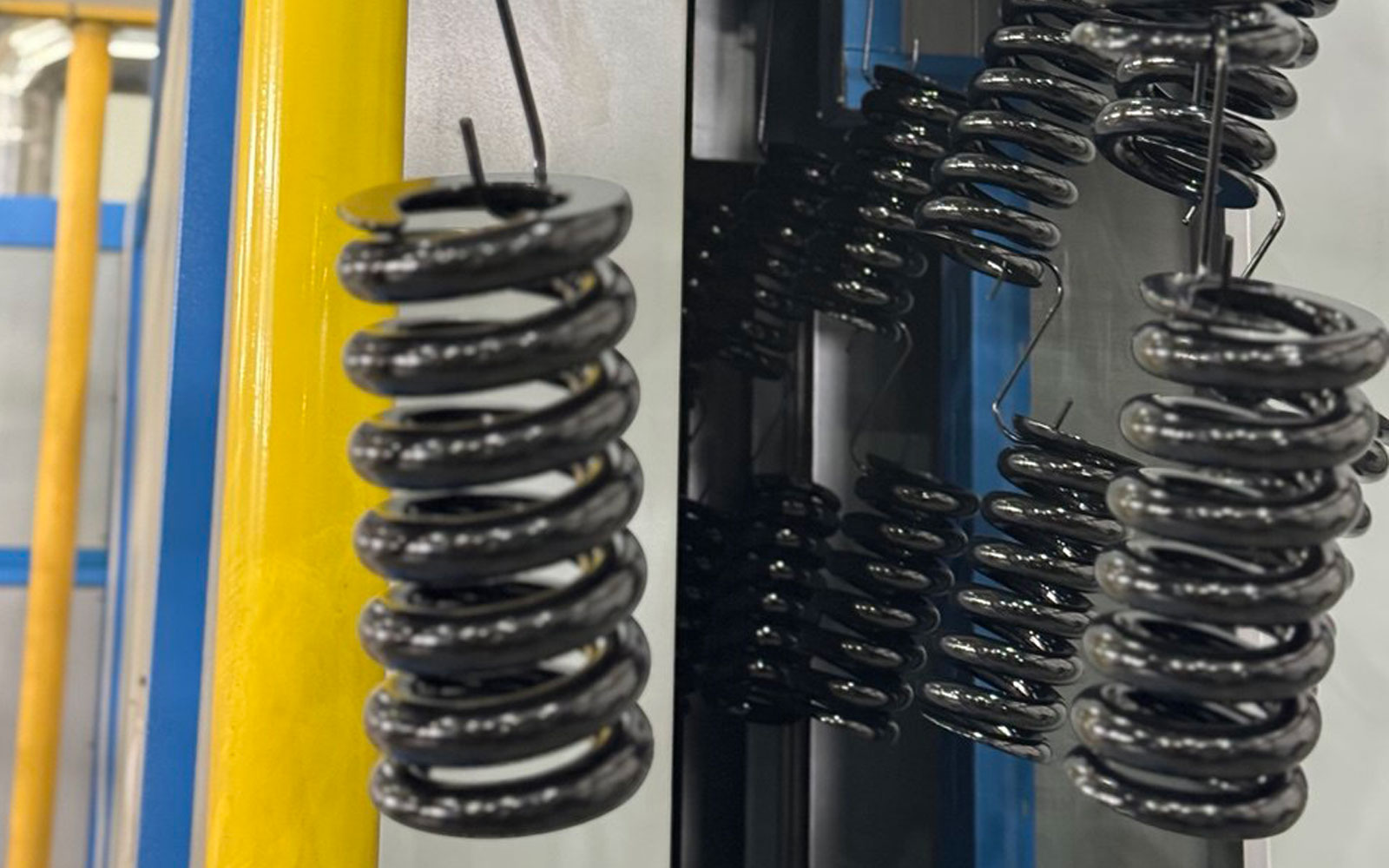

Polymer powder coating
The powdered polymer coating forms a continuous impermeable film upon solidification. High adhesion is provided by the attraction of paint particles to the electrostatic field of the spring metal. Corrosion resistance, chemical and mechanical resistance, heat-stable.
