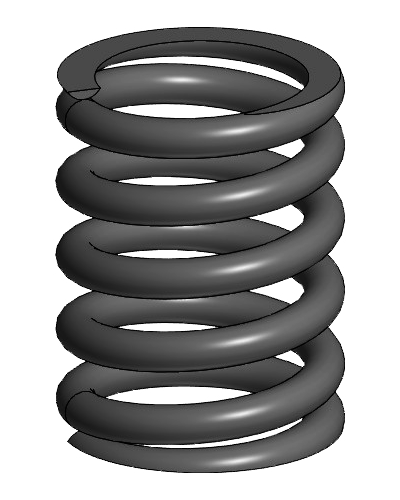

OST 108.764.01-80 №6

OST 108.764.01-80 №6

Type: №6

Spring OST 108.764.01-80 No. 6 for suspended pipeline systems. It is used in systems: fixing pipelines of offshore drilling platforms, ultra-high pressure pipelines, critical technological lines of CBS, pipelines of compressor and pumping stations. Ensures the integrity and safe operation of pipelines in extreme conditions: at temperatures from -60°C to +400°C, maximum load 11500 kgf, special heat treatment for use in aggressive environments. Compliance with the OST 108.764.01-80 standard is a complete set of accompanying documentation.

Rod diameter, mm 22
Inner diameter, mm 113
Spring height in the free state, mm 201
Length of the deployed spring, mm 2560
Weight, kg 7.63
Spring standard old /new RF/EAEU OST 108.764.01-80/GOST 13765-2022
Steel grade 60С2А
Material, GOST GOST 2590-71
Сoating Polimeric poweder
Сompliance with OST 24.125.109 26
The standard node is old /new of the Russian Federation/EAEU OST 24.125.109-01
Compliance with OST 108.764.01-80 №6
