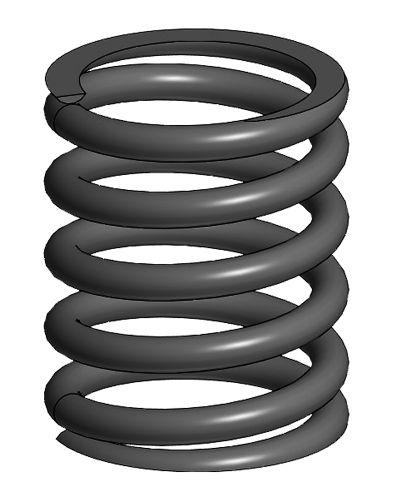

OST 108.764.01-80 №4

OST 108.764.01-80 №4

Type: №4

Spring OST 108.764.01-80 No. 4 for pipelines of oil production facilities. For systems: fixing pipelines, high-pressure pipelines, field oil collection systems, important technological lines. A responsible spring for compensating for thermal expansion and vibration loads in pipelines. It guarantees the stability and safety of pipelines when operating under extreme pressures up to 5200 kgf, temperatures of -60°C up to +400°C and aggressive environments. The production fully complies with the requirements of the interstate standard OST 108.764.01-80. Increased cyclic stability.

Rod diameter, mm 18
Inner diameter, mm 113
Spring height in the free state, mm 177
Length of the deployed spring, mm 2480
Weight, kg 4.96
Spring standard old /new RF/EAEU OST 108.764.01-80/GOST 13765-2022
Steel grade 60С2А
Material, GOST GOST 2590-71
Сoating Polimeric poweder
Сompliance with OST 24.125.109 24
The standard node is old /new of the Russian Federation/EAEU OST 24.125.109-01/GOST R 58949-2020
Compliance with OST 108.764.01-80 №4
