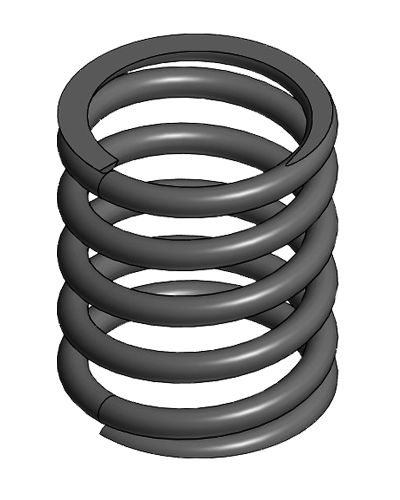

Type: №3
Spring OST 108.764.01-80 No. 3 for pipeline systems: drilling rig lines, field pipeline support, in high-pressure pipelines, in pumping and compressor equipment. The springs are designed to compensate for thermal deformations, vibration and dynamic loads. Ensures the stability and safe operation of pipelines in conditions of extreme temperatures and aggressive environments. The production meets the requirements of the interstate standard OST 108.764.01-80.
| Rod diameter, mm | 16 |
| Inner diameter, mm | 113 |
| Spring height in the free state, mm | 166 |
| Length of the deployed spring, mm | 2440 |
| Weight, kg | 3.86 |
| Spring standard old /new RF/EAEU | OST 108.764.01-80/GOST 13765-2022 |
| Steel grade | 60С2А |
| Material, GOST | GOST 2590-71 |
| Сoating | Polimeric poweder |
| Сompliance with OST 24.125.109 | 23 |
| The standard node is old /new of the Russian Federation/EAEU | OST 24.125.109-01/GOST R 58949-2020 |
| Compliance with OST 108.764.01-80 | №3 |
