OST 108.764.01-80 №24

OST 108.764.01-80 №24

Type: №24

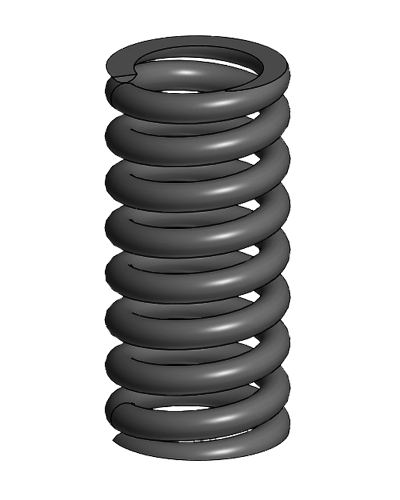

Suspension spring OST 108.764.01-80 No. 24 for pipelines. The spring is designed for extreme loads up to 166,000 kgf with maximum thermal temperatures of -60°C... +400°C and vibration effects in the oil and gas industry.Application: main pipelines, high-power compressor and pumping stations, technological strapping systems, energy facilities, oil refining enterprises.
Rod diameter, mm 40
Inner diameter, mm 165
Spring height in the free state, mm 508
Length of the deployed spring, mm 5830
Weight, kg 57.5
Spring standard old /new RF/EAEU OST 108.764.01-80/GOST 13765-2022
Steel grade 60С2А
Material, GOST GOST 2590-71
Сoating Polimeric poweder
Сompliance with OST 24.125.109 12
The standard node is old /new of the Russian Federation/EAEU OST 24.125.109-01/GOST R 58949-2020
Compliance with OST 108.764.01-80 №24
