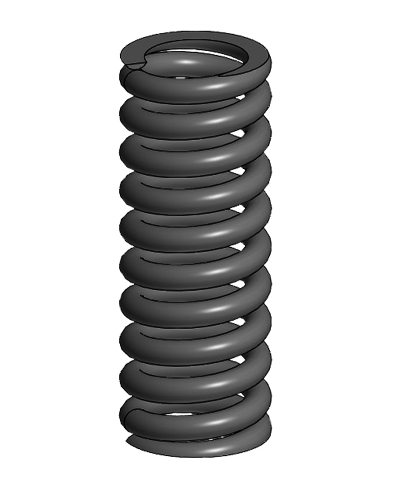

OST 108.764.01-80 №23
Type: №23
Suspension spring OST 108.764.01-80 No. 23 for pipelines. The product is designed for extreme loads up to 157,000 kgf with maximum thermal temperatures of -60°C... +400°C and vibration effects. Application: main pipelines, compressor and pumping stations, technological strapping systems, energy facilities, oil refining enterprises.
| Rod diameter, mm | 36 |
| Inner diameter, mm | 138 |
| Spring height in the free state, mm | 549 |
| Length of the deployed spring, mm | 6040 |
| Weight, kg | 48.3 |
| Spring standard old /new RF/EAEU | OST 108.764.01-80/GOST 13765-2022 |
| Steel grade | 60С2А |
| Material, GOST | GOST 2590-71 |
| Сoating | Polimeric poweder |
| Сompliance with OST 24.125.109 | 11 |
| The standard node is old /new of the Russian Federation/EAEU | OST 24.125.109-01/GOST R 58949-2020 |
| Compliance with OST 108.764.01-80 | №23 |
