OST 108.764.01-80 №21

OST 108.764.01-80 №21

Type: №21

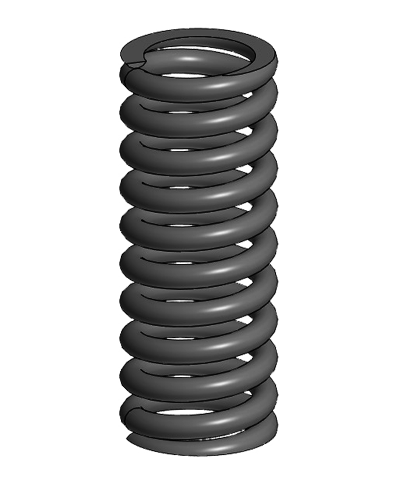

Suspension spring OST 108.764.01-80 No. 21 for pipelines. The design is designed for maximum operating loads up to 139,000 kgf and is intended for use in facilities with extreme temperatures from -60°C to +400°C. and vibration effects. To compensate for temperature deformations and vibrations of pipelines, highways, technological strapping, and energy facilities.

Rod diameter, mm 32
Inner diameter, mm 138
Spring height in the free state, mm 507
Length of the deployed spring, mm 5900
Weight, kg 37.23
Spring standard old /new RF/EAEU OST 108.764.01-80/GOST 13765-2022
Steel grade 60С2А
Material, GOST GOST 2590-71
Сoating Polimeric poweder
Сompliance with OST 24.125.109 9
The standard node is old /new of the Russian Federation/EAEU OST 24.125.109-01/GOST R 58949-2020
Compliance with OST 108.764.01-80 №21
