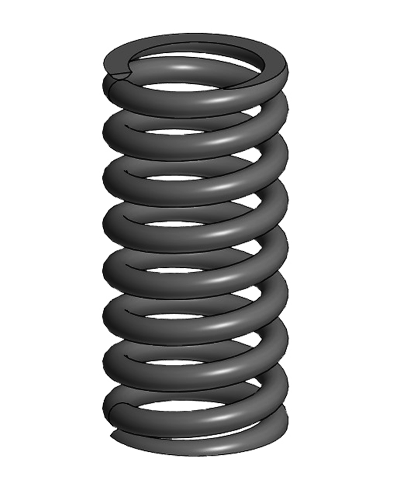

OST 108.764.01-80 №20

OST 108.764.01-80 №20

Type: №20

Suspension spring OST 108.764.01-80 No. 20 for pipelines, as well as main pipelines, compressor and pumping stations, technological strapping systems in oil and gas production, energy facilities, and oil refining enterprises. The spring is designed for maximum loads up to 130,000 kgf with extreme operating conditions in the temperature range of -60°C... +400°C.

Rod diameter, mm 28
Inner diameter, mm 138
Spring height in the free state, mm 399
Length of the deployed spring, mm 4720
Weight, kg 22.8
Spring standard old /new RF/EAEU OST 108.764.01-80/GOST 13765-2022
Steel grade 60С2А
Material, GOST GOST 2590-71
Сoating Polimeric poweder
Сompliance with OST 24.125.109 8
The standard node is old /new of the Russian Federation/EAEU OST 24.125.109-01/GOST R 58949-2020
Compliance with OST 108.764.01-80 №20
