OST 108.764.01-80 №2

OST 108.764.01-80 №2

Type: №2

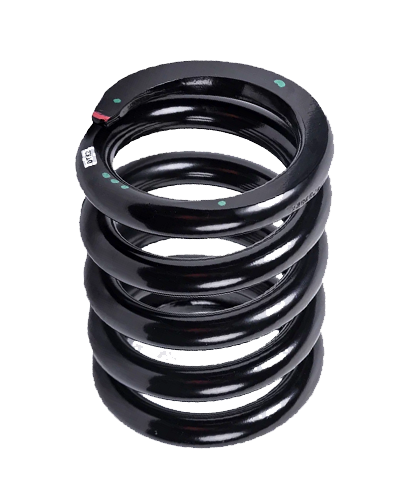

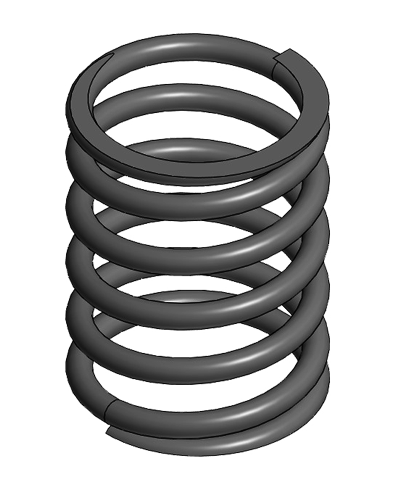

Spring OST 108.764.01-80 No. 2 for suspended pipeline systems. It is designed to compensate for thermal expansion, vibration and dynamic loads in process pipelines, high-pressure pipelines and drilling rig strapping systems. Ensures the stability and integrity of pipelines when operating under high pressures, temperatures and aggressive environments. Manufactured in strict accordance with the requirements of the interstate standard OST 108.764.01-80.

Rod diameter, mm 12
Inner diameter, mm 93
Spring height in the free state, mm 151
Length of the deployed spring, mm 2160
Weight, kg 1.92
Spring standard old /new RF/EAEU OST 108.764.01-80/GOST 13765-2022
Steel grade 60С2А
Material, GOST GOST 2590-71
Сoating Polimeric poweder
Сompliance with OST 24.125.109 22
The standard node is old /new of the Russian Federation/EAEU OST 24.125.109-01/GOST R 58949-2020
Compliance with OST 108.764.01-80 №2
