OST 108.764.01-80 №18

OST 108.764.01-80 №18

Type: №18

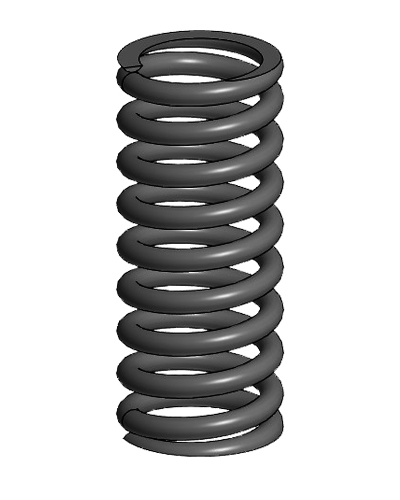

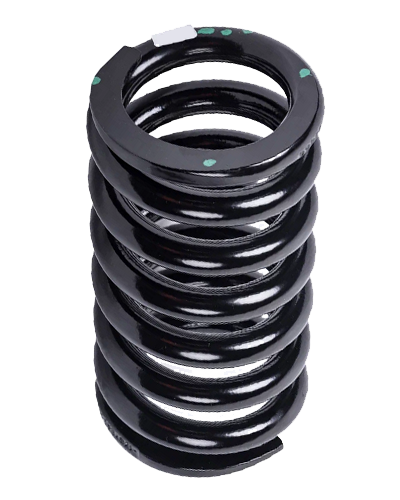

Suspension spring OST 108.764.01-80 No. 18 for pipeline fastening systems, hydrocarbon transportation lines, strapping systems for drilling and pumping equipment, power plants and compressor stations. The spring is designed to compensate for thermal expansion and vibration loads on high-pressure pipelines in the oil and gas industry. Complies with OST 108.764.01-80 standard, operating load up to 112,000 kgf, temperature range from -60°C to +400°C. A ready-made installation solution with a guarantee of reliability and durability.

Rod diameter, mm 22
Inner diameter, mm 113
Spring height in the free state, mm 369
Length of the deployed spring, mm 4260
Weight, kg 12.7
Spring standard old /new RF/EAEU OST 108.764.01-80/GOST 13765-2022
Steel grade 60С2А
Material, GOST GOST 2590-71
Сoating Polimeric poweder
Сompliance with OST 24.125.109 6
The standard node is old /new of the Russian Federation/EAEU OST 24.125.109-01/GOST R 58949-2020
Compliance with OST 108.764.01-80 №18
