OST 108.764.01-80 №15

OST 108.764.01-80 №15

Type: №15

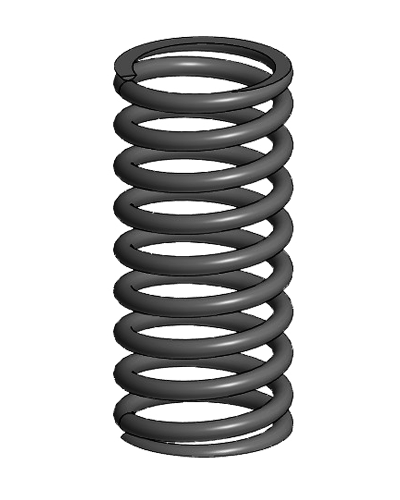

Spring OST 108.764.01-80 No. 15 for compensation of temperature deformations and vibration loads of technological pipelines at oil and gas facilities. The spring is designed to stabilize and protect high-pressure pipelines in field preparation systems, transportation of hydrocarbons and strapping of drilling equipment. The technical specifications comply with the requirements of the OST 108.764.01-80 standard. The temperature range is from -60°C to +400°C at loads up to 84,000 kgf. Each product is tested for cyclic endurance.

Rod diameter, mm 16
Inner diameter, mm 113
Spring height in the free state, mm 308
Length of the deployed spring, mm 4070
Weight, kg 6.43
Spring standard old /new RF/EAEU OST 108.764.01-80/GOST 13765-2022
Steel grade 60С2А
Material, GOST GOST 2590-71
Сoating Polimeric poweder
Сompliance with OST 24.125.109 3
The standard node is old /new of the Russian Federation/EAEU OST 24.125.109-01/GOST R 58949-2020
Compliance with OST 108.764.01-80 №15
