OST 108.764.01-80 №14

OST 108.764.01-80 №14

Type: №14

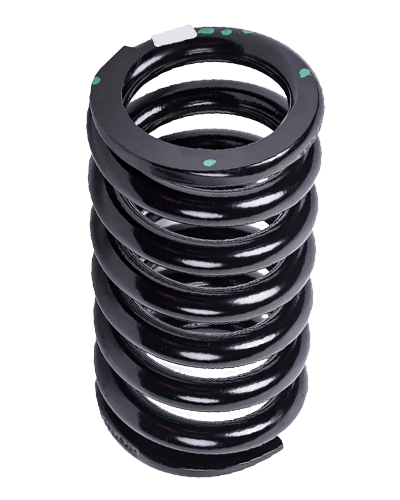

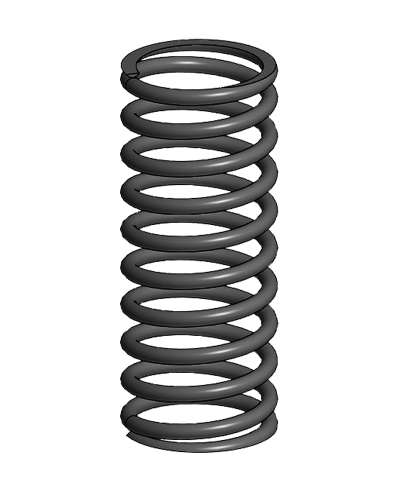

Spring OST 108.764.01-80 No. 14 for compensation of temperature deformations and vibration loads of technological pipelines at oil and gas facilities. The product is designed to stabilize and protect high-pressure pipelines in field preparation systems, transportation of hydrocarbons and strapping of drilling equipment. Technical specifications comply with the requirements of the OST 108.764.01-80 standard, marking according to the requirements of PB 03-75-2020. The temperature range is from -60°C to +400°C at loads up to 72000 kgf. Each product is tested for cyclic endurance.
Rod diameter, mm 12
Inner diameter, mm 93
Spring height in the free state, mm 284
Length of the deployed spring, mm 3650
Weight, kg 3.24
Spring standard old /new RF/EAEU OST 108.764.01-80/GOST 13765-2022
Steel grade 60С2А
Material, GOST GOST 2590-71
Сoating Polimeric poweder
Сompliance with OST 24.125.109 2
The standard node is old /new of the Russian Federation/EAEU OST 24.125.109-01/GOST R 58949-2020
Compliance with OST 108.764.01-80 №14
