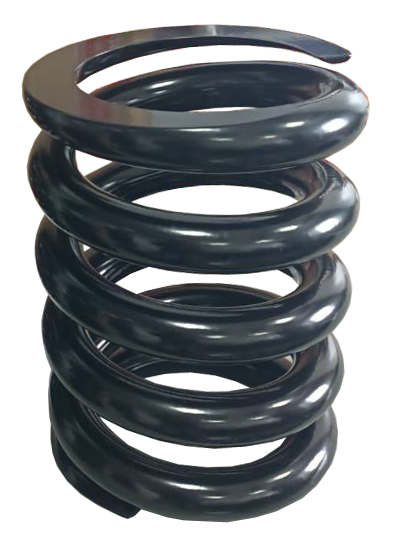

Outer spring for bogie Y25; 22,5т

Outer spring for bogie Y25; 22,5т

Type: Outer spring

External spring for the Y25 trolley; 22.5t is a key component of the spring suspension, designed for the repair of freight wagons with the Y25 trolley. Designed for a load of 22.5 tons, it effectively absorbs vibrations and ensures smooth running. A reliable solution for restoring performance and routine suspension maintenance.

Model Y 25
Diametr, mm 31
Steel 51CrV4 according to EN 10089
Weight, kg 15
Standart UIC 822, EN 13298
Capacity 22.5
