OST 108.764.01-80 №13

OST 108.764.01-80 №13

Type: №13

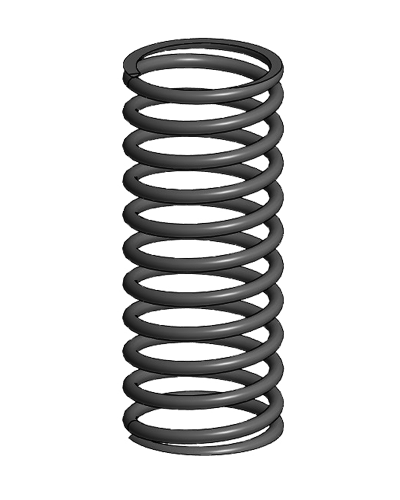

Spring OST 108.764.01-80 No. 13 for compensation of temperature deformations and vibration loads of technological pipelines of systems: pipelines of CS and DCS, fastening of mains on offshore platforms, routes of technological liquids and gases, emergency stop and protection. The product is designed to stabilize and protect high-pressure pipelines in field preparation systems, transportation of hydrocarbons and strapping of drilling equipment. Technical specifications comply with the requirements of the OST 108.764.01-80 standard, marking according to the requirements of PB 03-75-2020. In the temperature range from -60°C to +400°C at loads up to 61,000 kgf with a safety margin of 20%. Each product is tested for cyclic endurance.

Rod diameter, mm 10
Inner diameter, mm 93
Spring height in the free state, mm 270
Length of the deployed spring, mm 3900
Weight, kg 2.4
Spring standard old /new RF/EAEU OST 108.764.01-80/GOST 13765-2022
Steel grade 60С2А
Material, GOST GOST 2590-71
Сoating Polimeric poweder
Сompliance with OST 24.125.109 1
The standard node is old /new of the Russian Federation/EAEU OST 24.125.109-01
Compliance with OST 108.764.01-80 №13
