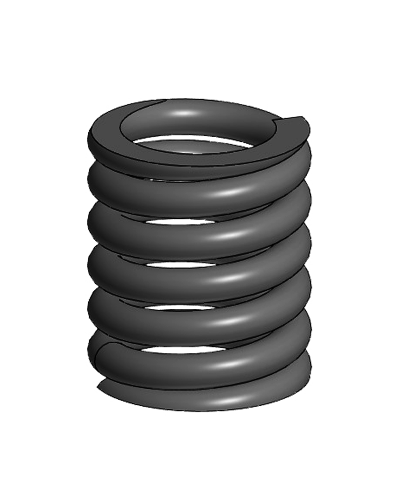

OST 108.764.01-80 №12

OST 108.764.01-80 №12

Type: №12

Spring OST 108.764.01-80 No. 12 for suspended pipeline systems in the oil and gas industry. Designed to compensate for extreme thermal deformations, vibration and shock loads in ultra-high pressure pipelines. Ensures safe operation of critical pipeline systems in conditions of intense vibrations, maximum load up to 51,000 kgf, aggressive environments and temperature fluctuations from -60°C to +400°C. Manufactured in strict accordance with the requirements of the interstate standard OST 108.764.01-80.

Rod diameter, mm 40
Inner diameter, mm 165
Spring height in the free state, mm 35.1
Length of the deployed spring, mm 3560
Weight, kg 35.1
Spring standard old /new RF/EAEU OST 108.764.01-80/GOST 13765-2022
Steel grade 60С2А
Material, GOST GOST 2590-71
Сoating Polimeric poweder
Сompliance with OST 24.125.109 32
The standard node is old /new of the Russian Federation/EAEU OST 24.125.109-01/GOST R 58949-2020
Compliance with OST 108.764.01-80 №12
