OST 108.764.01-80 №11

OST 108.764.01-80 №11

Type: №11

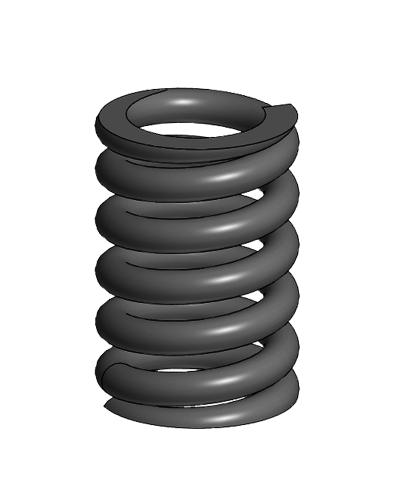

Spring OST 108.764.01-80 No. 11 for suspended pipeline systems. Designed to compensate for thermal deformations, vibration and shock loads in ultra-high pressure pipelines. It ensures the safe operation of critical pipeline systems in conditions of intense vibrations with a maximum load of up to 42,000 kgf, aggressive environments and temperature fluctuations from -60°C to +400°C. It is manufactured in strict accordance with the requirements of the interstate standard OST 108.764.01-80.

Rod diameter, mm 36
Inner diameter, mm 138
Spring height in the free state, mm 28.52
Length of the deployed spring, mm 3570
Weight, kg 28.52
Spring standard old /new RF/EAEU OST 108.764.01-80/GOST 13765-2022
Steel grade 60С2А
Material, GOST GOST 2590-71
Сoating Polimeric poweder
Сompliance with OST 24.125.109 31
The standard node is old /new of the Russian Federation/EAEU OST 24.125.109-01
Compliance with OST 108.764.01-80 №11
