OST 108.764.01-80 №10

OST 108.764.01-80 №10

Type: №10

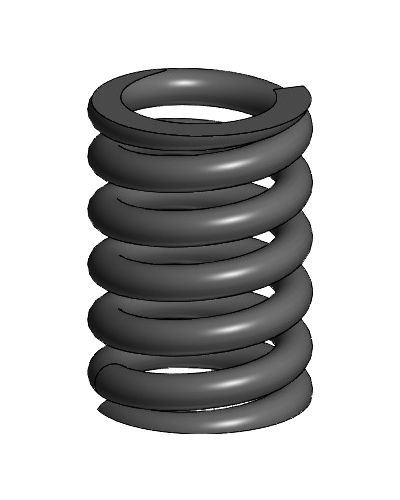

Spring OST 108.764.01-80 No. 10 for pipelines in the oil and gas industry. Designed to compensate for extreme thermal deformations, vibration and shock loads in ultra-high pressure pipelines. It provides safe operation of critical pipeline systems in conditions of intense vibrations, aggressive environments and temperature fluctuations from -60°C to +400°C with a maximum load of up to 34,000 kgf. It is manufactured in strict accordance with the requirements of the interstate standard OST 108.764.01-80.

Rod diameter, mm 34
Inner diameter, mm 138
Spring height in the free state, mm 289
Length of the deployed spring, mm 3530
Weight, kg 25.2
Spring standard old /new RF/EAEU OST 108.764.01-80/GOST 13765-2022
Steel grade 60С2А
Material, GOST GOST 2590-71
Сoating Polimeric poweder
Сompliance with OST 24.125.109 30
The standard node is old /new of the Russian Federation/EAEU OST 24.125.109-01/GOST R 58949-2020
Compliance with OST 108.764.01-80 №10
