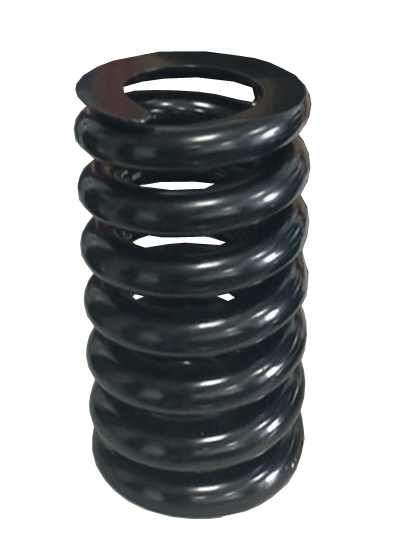

Inner spring for bogie 18-100

Inner spring for bogie 18-100

Type: Inner spring

The suspension spring of railway freight wagons is designed for the repair and operation of model 18-100 trolleys, directly affecting smooth running, stability and safety. Manufactured in accordance with the industry standard. It is designed for a standard load of 23.5 tons per truck. It provides optimal damping of vertical dynamic impacts, protecting the trolley frame and the wagon body from shock loads.

Model 18-100
Diametr, mm 20
Steel 60C2HFA, 55S2 according to GOST 14959-2016
Weight, kg 6.21
Standart GOST 1452; GOST 9246-2013
Capacity 23.5
