OST 108.764.01-80 №1

OST 108.764.01-80 №1

Type: №1

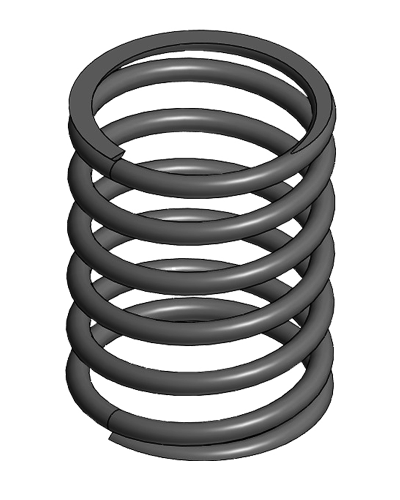

Spring OST 108.764.01-80 No. 1 for suspended pipeline systems in the oilfield and drilling industry. Designed to compensate for thermal expansion, vibration and mechanical loads in process pipelines. Ensures the stability and integrity of the mains during operation at high pressures and temperatures. Manufactured in strict accordance with the requirements of the interstate standard OST 108.764.01-80.

Rod diameter, mm 10
Inner diameter, mm 93
Spring height in the free state, mm 143
Length of the deployed spring, mm 2280
Weight, kg 1.4
Spring standard old /new RF/EAEU OST 108.764.01-80/GOST 13765-2022
Steel grade 60С2А
Material, GOST GOST 2590-71
Сoating Polimeric poweder
Сompliance with OST 24.125.109 24
The standard node is old /new of the Russian Federation/EAEU OST 24.125.109-01/GOST R 58949-2020
Compliance with OST 108.764.01-80 №1
